Samtec breakout adapter QSH QTH 030 2rowsx30 pins SE DE


30 days money back guaranteed on ALL Products

Shipping worldwide

QTH Series Samtec breakout adapter 0.5mm pitch

2 rows x 30 pin per row Samtec test board— 4 Layers PCB design module + GND test point

Mates with any height and formfactor Samtec QSH030 Q-Strip Hi-Speed connector

Samtec QTH series breakout adapter are offered in 2 formfactor as listed below;
Both formfactors modules provide full access to Samtec QTH connector pins via onboard header
Insertion loss > -2dB @ 3GHz
Excellent signal integrity.

Best in class test and measurement tool for high speed application.



  1- ZX100QTH-030 Breakout Adapter fully extended, height 1.9"(50mm)
      ZX100-QTH030ST

$85

  2- ZX100QTH-RK Breakout Adapter - Low profile, in-system rackmount applications, height 0.98"(25mm)
      ZX100QTH-RK

$85

QSH Series Samtec breakout adapter 0.5mm pitch

2 rows x 30 pin per row Samtec test board— 4 Layers PCB design module + GND test point

Mates with any height and formfactor Samtec QTH030 Q-Strip Hi-Speed connector

Samtec QSH series breakout adapter are offered in 2 formfactor as listed below;
Both formfactors modules provide full access to Samtec QSH connector pins via onboard header
Insertion loss > -2dB @ 3GHz
Excellent signal integrity.

Best in class test and measurement tool for high speed application.



  1- ZX100QSH-030 Breakout Adapter fully extended, height 1.9"(50mm)
      ZX100-QSH030ST

$125

  2- ZX100QSH-RK Breakout Adapter - Low profile, in-system rackmount applications, height 0.92"(23mm)
      ZX100QSH-RK

$125

Onboard QSH , QTH series Samtec breakout adapter 0.5mm pitch

2 rows x 30 pin per row Samtec Breakout adapter - test board— 4 Layers PCB design module + GND test point

Mates with any height and formfactor Samtec QTH030 , and QSH030 Q-Strip Hi-Speed connector as well as differential pair, DP QTH020 QSH020

ZX101 breakout adapter is offered in 2 different formfactors as listed below

1- ZX101-QSH-QTH030 fully extended breakout adapter - Max. hight 2.0"
2- ZX101RK Rack mount applications - Max. height 1.38"

Features:
a) Onboard QSH & QTH series connectors
b) Full access to Samtec QSH-QTH connector pins via onboard header pins
c) Insertion loss > -2dB @ 3GHz
d) Ideal for real-time test & measurement
e) Excellent signal integrity.

Best in class test and measurement tool for high speed application.



  2- ZX101-QSH-QTH030 Breakout Adapter - height 2.0"(52mm)
      ZX101

$125

  2- ZX101RK Breakout Adapter -Low profile, in-system rackmount applications
      ZX101RK

$125



ZX101S — QSH 030 to QSH 030 - Direct connection

2 rows x 30 pins per row - 60 pins Samtec breakout adapter — 4 Layers design with GND test points

This module has onboard QSH connectors type, only. It mates with any height QTH030 or QTH020 Q-Strip Hi-Speed Samtec connectors.

Features:
a) Onboard QSH connectors
b) Full access to Samtec QSH-QSH connector pins via onboard header pins
c) Insertion loss > -2dB @ 3GHz
d) Ideal for real-time test & measurement
e) Excellent signal integrity.

Best in class test and measurement tool for high speed application.









$145

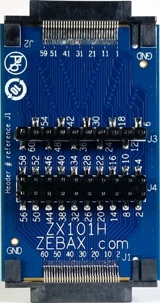

ZX101H — QTH 030 to QTH 030— Direct connection

2 rows x 30 pin per row - 60 pins Samtec breakout adapter — 4 Layers design with GND test points

This module has onboard QTH connectors type, only. It mates with any height QSH030 or QSH020 Q-Strip Hi-Speed Samtec connectors.

Features:
a) Onboard QSH connectors
b) Full access to Samtec QSH-QSH connector pins via onboard header pins
c) Insertion loss > -2dB @ 3GHz
d) Ideal for real-time test & measurement
e) Excellent signal integrity.

Best in class test and measurement tool for high speed application. r









$145
